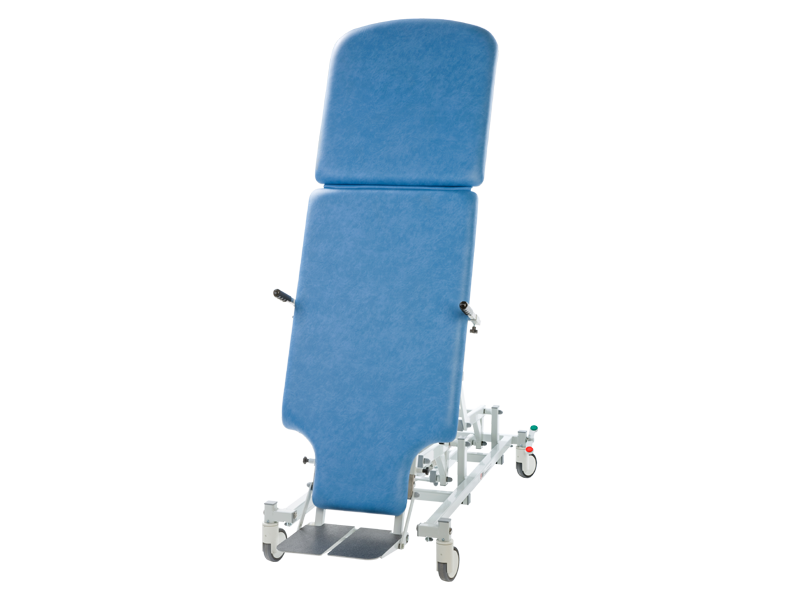

A 2-section examination couch for vascular ultrasounds

The Autotilt DOPPLER is suitable for a wide range of assessments and examinations in vascular ultrasound. It is highly adjustable and can be lowered, raised and tilted as required by the clinician and patient.

  • Safe working load and lifting capacity of 225 kg (495 lbs).
  • Large mobile wheel design, with central locking and steering facility.
  • Electric height and tilting operation with hand switch as standard.
  • Adjustable angle dual foot boards +15˚ to -30˚ (4 Positions).
  • Height range of 47 cm to 101 cm.
  • Tilting angle from 0˚ to +90˚.
  • Lowers to wheelchair height for ease of patient transfer.
  • Tilt angle inclinometer fitted as standard.
  • Purpose made precision bearings on all pivot points.
  • Clearance beneath frame for mobile hoist.
  • Supplied with patient handgrips and set of harnesses.
  • Patient worktable supplied as standard.

Features

2 Sections

The Autotilt DOPPLER can be transformed from a flat surface for examination to a resting position with head and neck support using the folding 2-sections to facilitate patient comfort.

Large Mobile Wheel Design

The 150 mm castors with pedals are highly manoeuvrable. There are three locking modes; free roam, directional lock for steering, and full lock.

For serviceability, the one directional locking castor is marked with a yellow pedal sticker.

Easy Clean Upholstery

The table is finished with easily cleanable upholstery, which hides all visible fastenings and provides a large wipeable surface made from recycled ABS. This new upholstery does not fray like traditional materials such as Hessian.

Full Length Lateral Support Fixing Bars

Two full length stainless steel bars on either side of the table allow optional lateral supports to be mounted at any height. These bars are also fixing points for the standard accessories such as the worktable, hand grips and harnesses.
