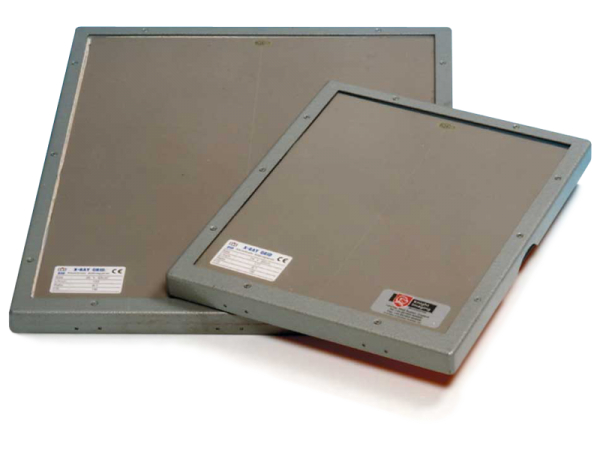

X-Ray Imaging Accessory

X-Ray grids are aluminium interspaced and cover construction. Grids are available in a range of grid specifications and sizes available.

When deciding which grids are suitable, please compare them in your own department and see the images for yourselves.

There are a number of factors to consider, however, if you require help in making your selection please submit an inquiry or call our office.

X-Ray grid specifications and options

Please submit an inquiry to check current availability.

Focal Ranges      Medium Focused
86-11 cm / 34-44"
Long Focused
122-181 cm / 48-72"
Parallel
8:1 Ratio
60 lines/cm
(150 lines/inch)
Size (cm)

18 x 24 M7A-CXX-52 SFL/1808150 SPR/1808150
24 x 30 M7A-CXX-59 SFL/2408150 M7A-CXX-78
30 x 40 M7A-CXX-61 SFL/3008150 SPR/3008150
35 x 35 M7A-CXX-64 SFL/3508150 SPR/3508150
35 x 43 M7A-CXX-22 SFL/4308150 M7A-CXX-89

8:1 Ratio  70 lines/cm
(177 lines/inch)

18 x 24 M7A-CXX-53 SFL/1808177 M7A-CXX-72
24 x 30 M7A-CXX-10 SFL/2408177 M7A-CXX-30
30 x 40 SFM/3008177 SFL/3008177 SPR/3008177
35 x 35 SFM/3508177 SFL/3508177 SPR/3508177
35 x 43 M7A-CXX-23 M7A-CXX-01 M7A-CXX-90

10:1 Ratio
60 lines/cm
(150 lines/inch)

18 x 24 M7A-CXX-55 SFL/1810150 SPR/1810150
24 x 30 M7A-CXX-13 SFL/2410150 M7A-CXX-81
30 x 40 SFM/3010150 SFL/3010150 SPR/3010150
35 x 35 SFM/3510150 SFL/3510150 SPR/3510150
35 x 43 M7A-CXX-25 M7A-CXX-03 SPR/4310150

10:1 Ratio  70 lines/cm
(177 lines/inch)

18 x 24 SFM/1810177 SFL/1810177 SPR/1810177
24 x 30 M7A-CXX-14 SFL/2410177 SPR/2410177
30 x 40 SFM/3010177 SFL/3010177 SPR/3010177
35 x 35 SFM/3510177 SFL/3510177 SPR/3510177
35 x 43 M7A-CXX-26 M7A-CXX-04 M7A-CXX-92

Documents

Sorry, there are no documents available for this product.
